■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 病毒系列，慢病毒克隆載體 |
質粒大小: | 8825bp |
原核抗性: | Amp |
真核抗性: | Puro |
克隆菌株: | Stbl3 |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物:
| 根據序列設計引物
|
3'測序引物: | 根據序列設計引物 |
■ 質粒屬性
質粒宿主: | 哺乳細胞,慢病毒 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: | Puro
|
熒光標記: |
|
■ 質粒簡介
pLVX-EF1α-IRES-Puro contains all of the viral processing elements necessary for the production of replicationincompetent lentivirus, as well as elements to improve viral titer, transgene expression, and overall vector function. The woodchuck hepatitis virus posttranscriptional regulatory element (WPRE) promotes RNA processing events and enhances nuclear export of viral RNA, leading to increased viral titers from packaging cells. In addition, the vector includes a Rev-response element (RRE), which further increases viral titers by enhancing the transport of unspliced viral RNA out of the nucleus. Finally, pLVX-EF1α-IRES-Puro also contains a central polypurine tract/central termination sequence element (cPPT/CTS). During target cell infection, this element creates a central DNA flap that increases nuclear import ofthe viral genome, resulting in improved vector integration and more efficient transduction. The vector also contains a pUC origin of replication and an E. coli ampicillin resistance gene (Ampr) for propagation and selection in bacteria.

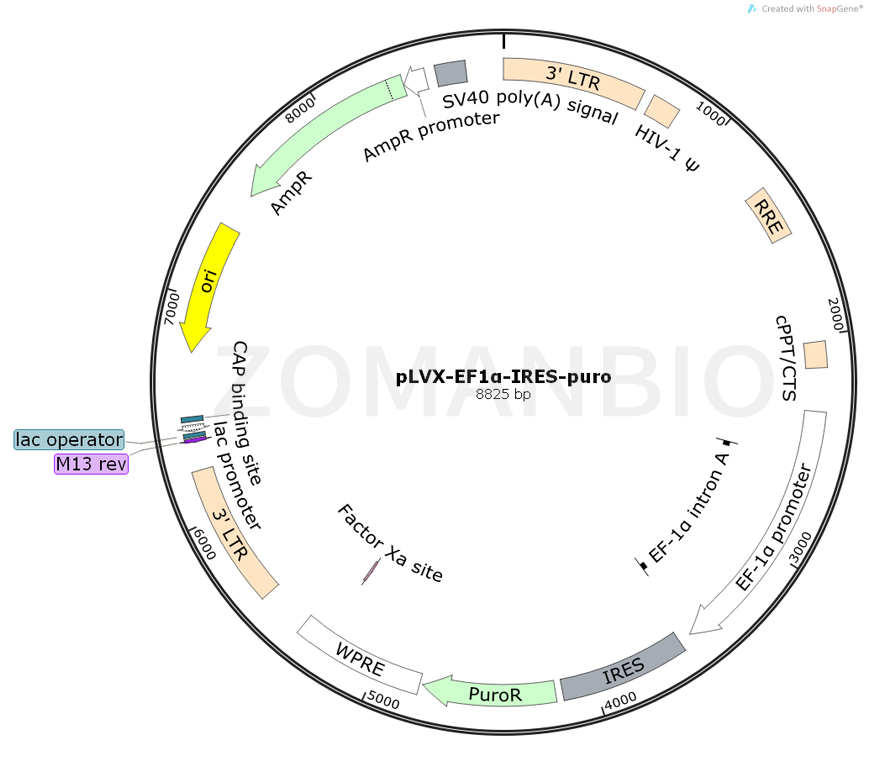

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK763pLVX-EF1α-IRES-puro慢病毒表達質粒.txt
